TYPICAL SPECIFICATION

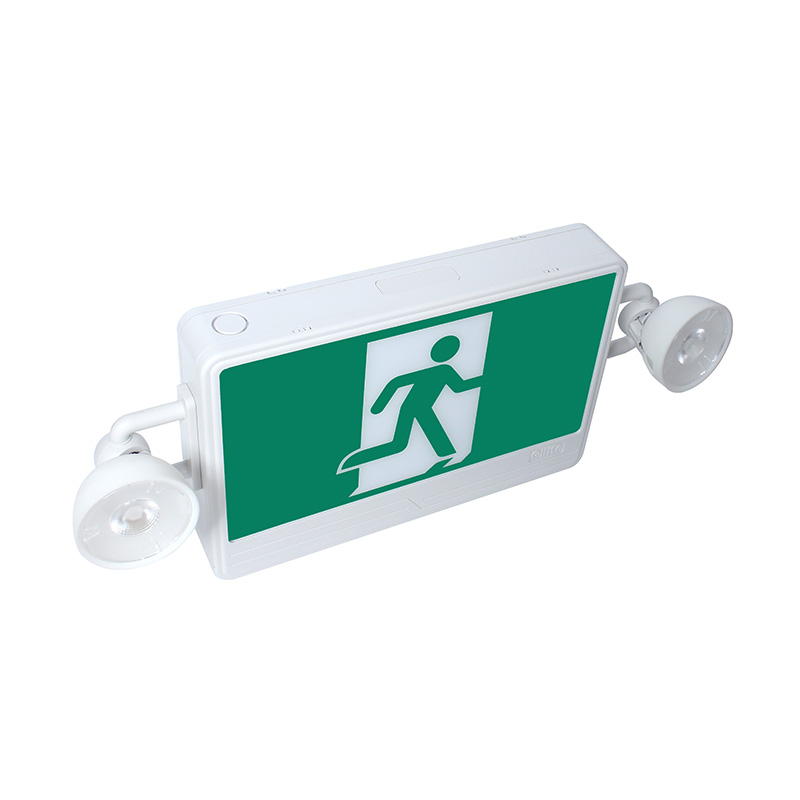

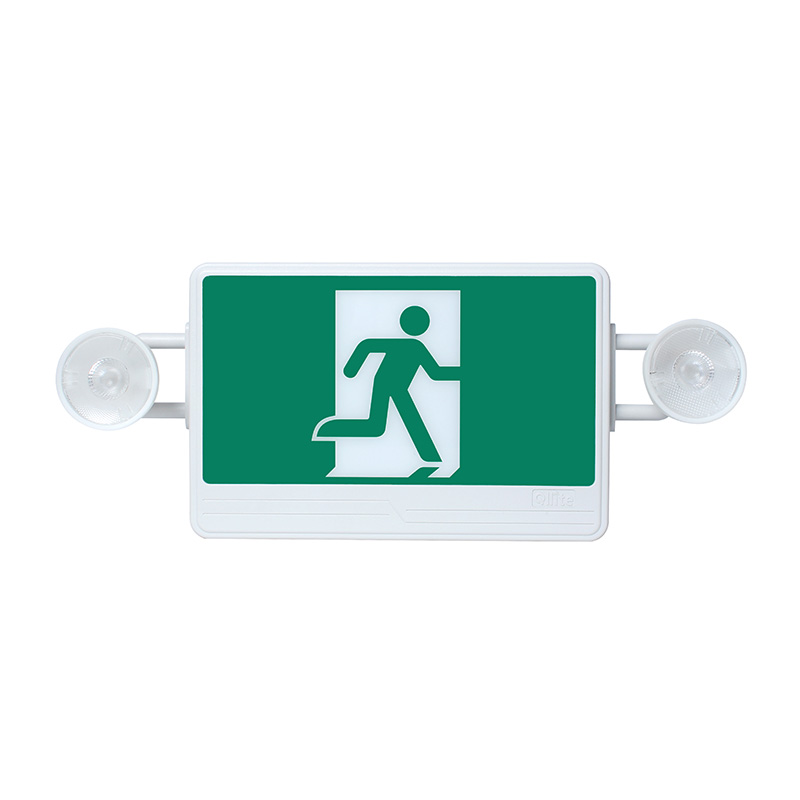

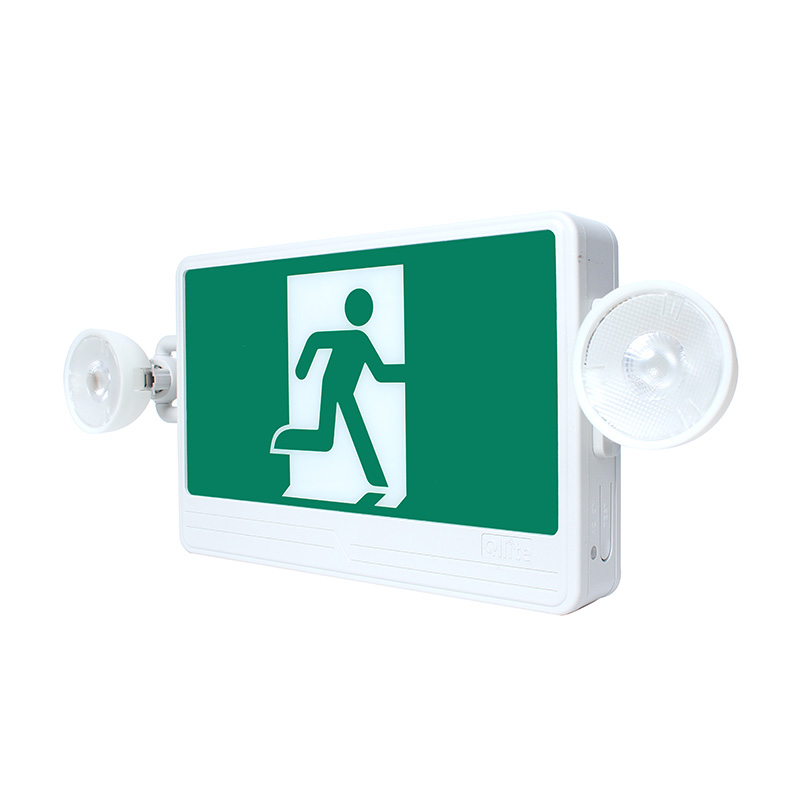

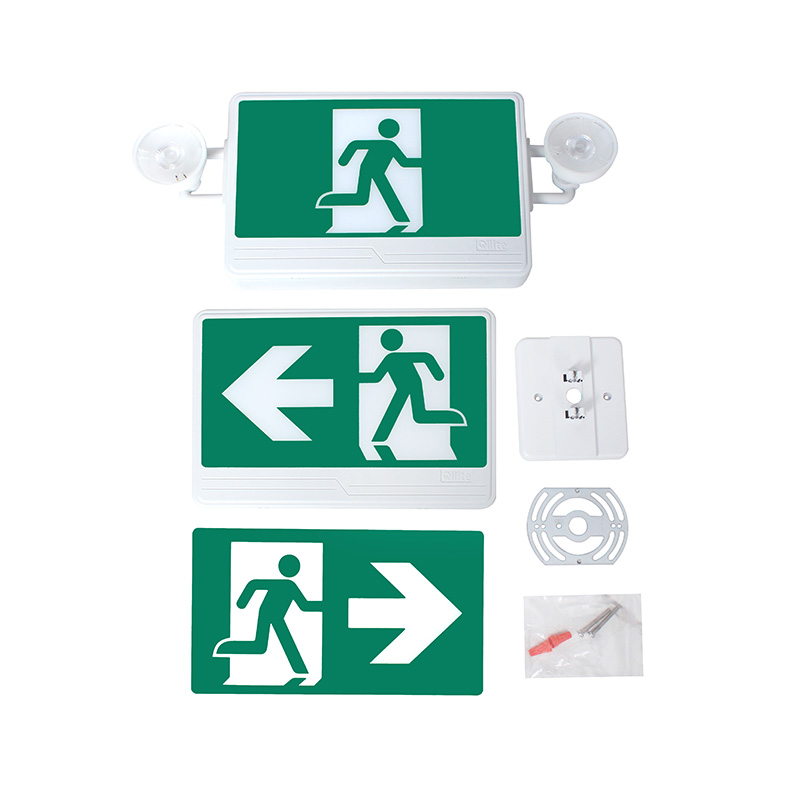

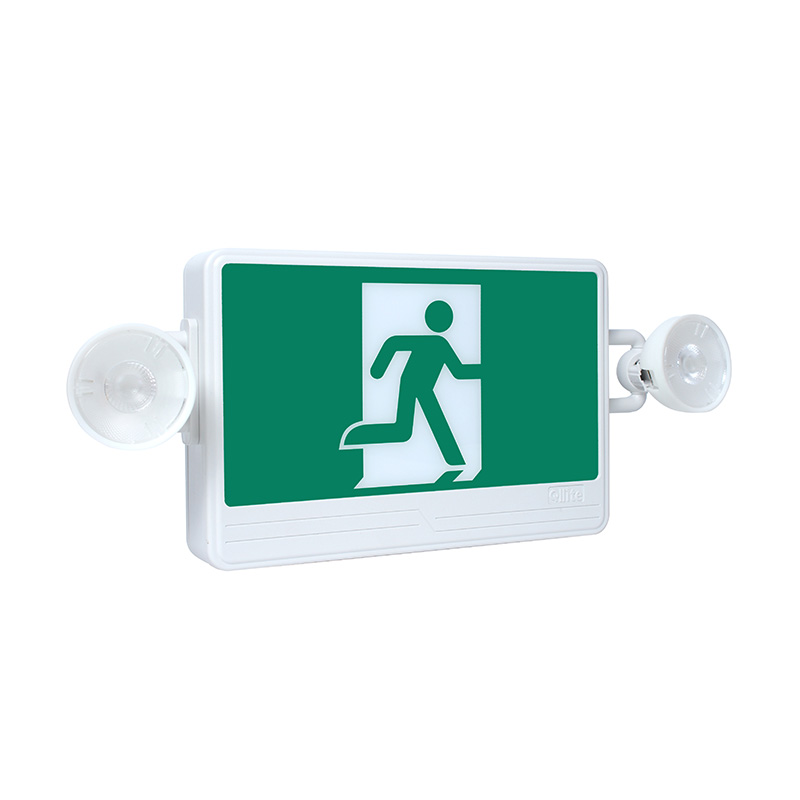

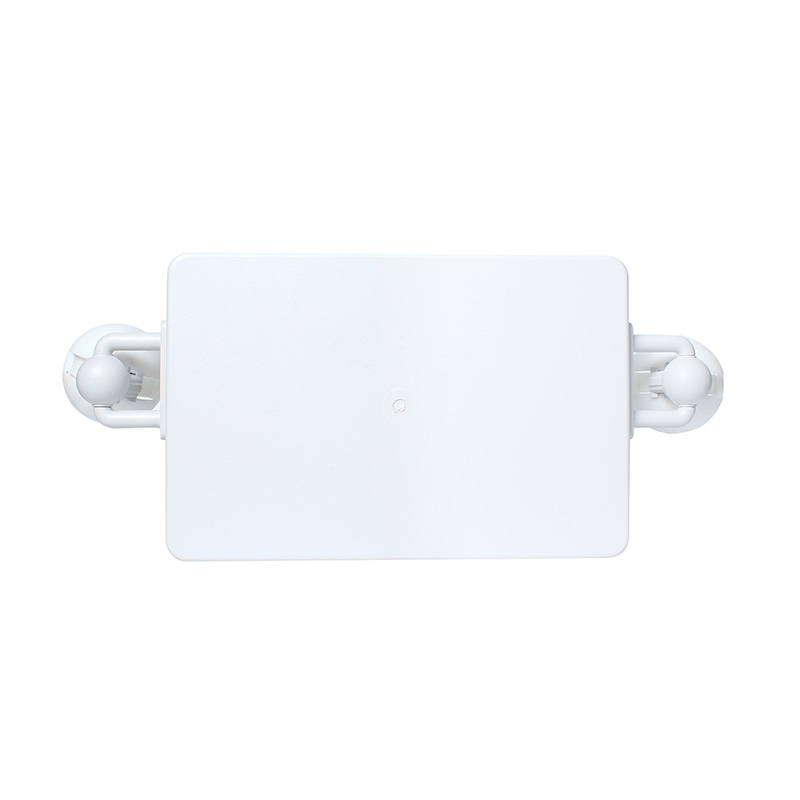

Supply and install the PCRMLP Series high-impact thermoplastic Running Man and Battery combination unit. The sign shall operate with universal 120 to 347 VAC input and provide a minimum of 90 minutes of emergency illumination for both the sign and the two integrated LED heads upon AC failure. The unit shall consist of two fully adjustable 1.5W LED heads providing a total of 250 lumens. The sign shall be field-configurable for single or double-face applications and be suitable for wall or ceiling mount. The unit shall be CSA C22.2 No. 141-15 certified and C860 listed.

CONSTRUCTION

• Material: Injection-molded, engineering-grade 5VA flame-retardant, high-impact thermoplastic.

• Design: Lightweight and durable, featuring quick-snap faceplates for rapid maintenance.

• Ambient Temperature: Rated for damp locations at (0°C to 50°C/32°F to 122°F).

ELECTRICAL

• Input: Universal 120-347Vac, 50/60Hz.

• Efficiency: Low energy consumption (2.3W) with a fully automatic, current-limiting charger.

• Protection: Integrated short-circuit and brownout protection with regulated charge voltage to maximize battery longevity.

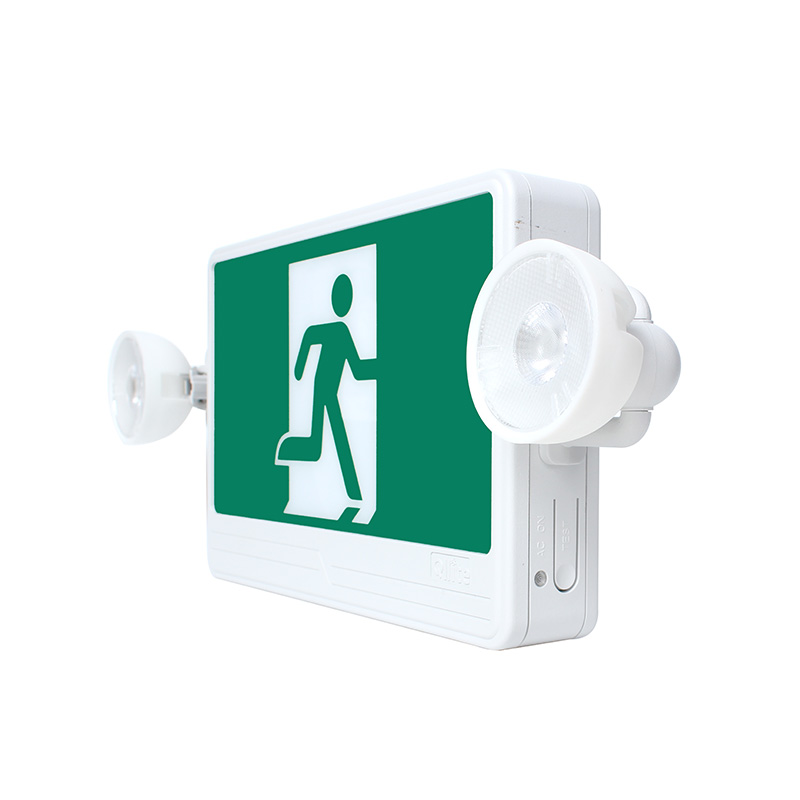

• Safety Safety: Includes a push-button test switch and diagnostic LED for AC ON status.

• Battery: 3.6V AA 900mAh long-life, maintenance-free, rechargeable NiCd battery.

LISTINGS & COMPLIANCE

• Performance: C860 listed for energy efficiency.

• Canadian Standards: Listed and labeled to comply with CSA C22.2 No. 141-15.
