TYPICAL SPECIFICATION

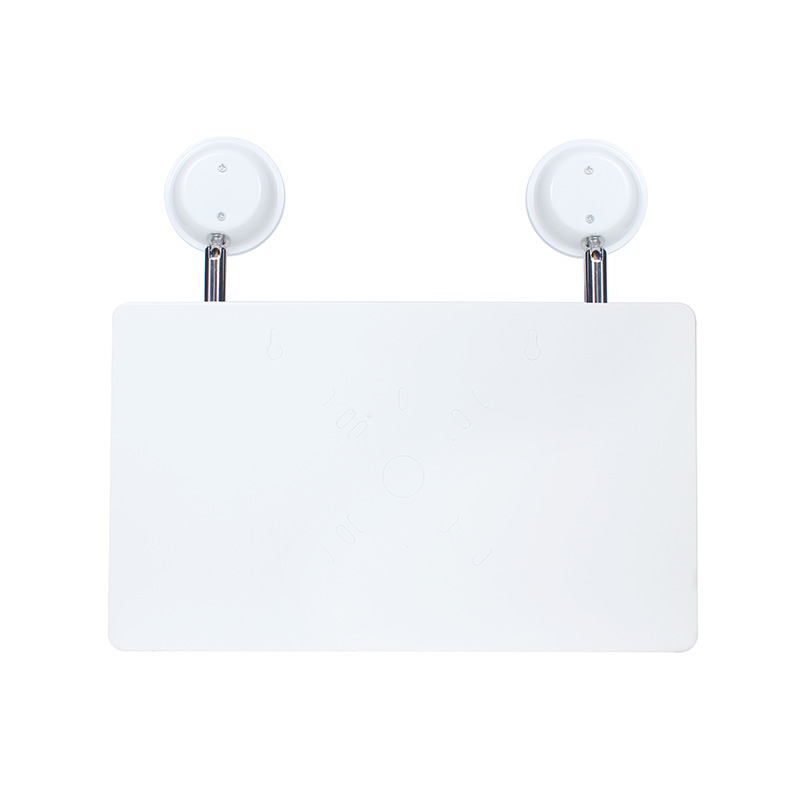

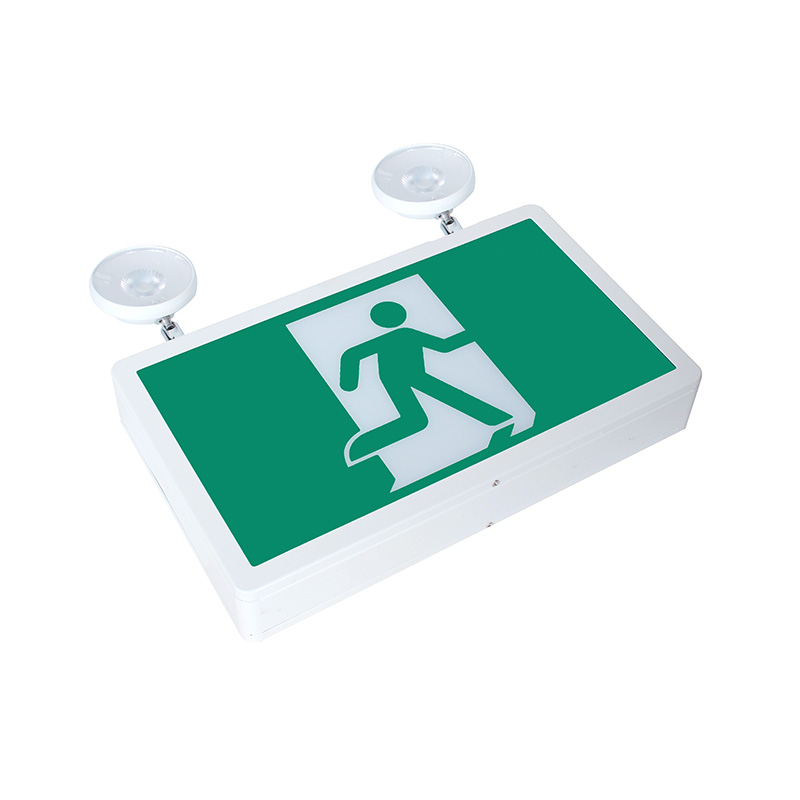

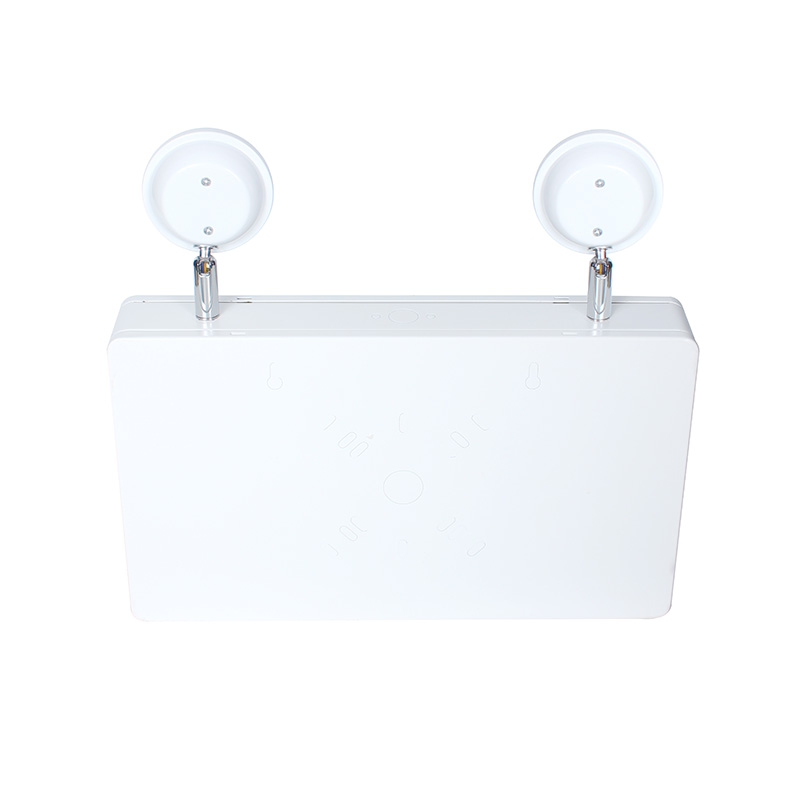

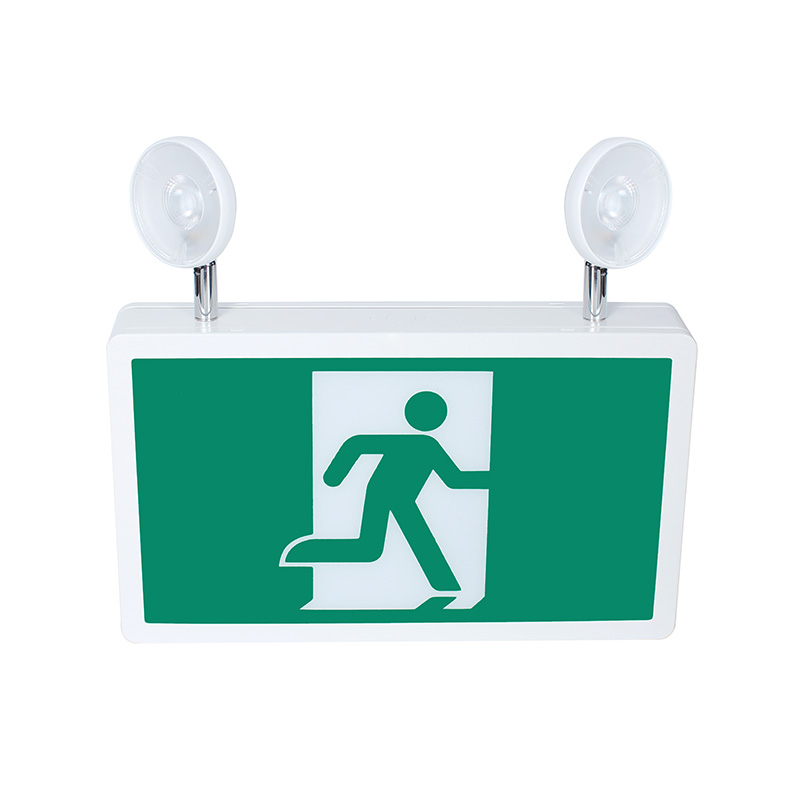

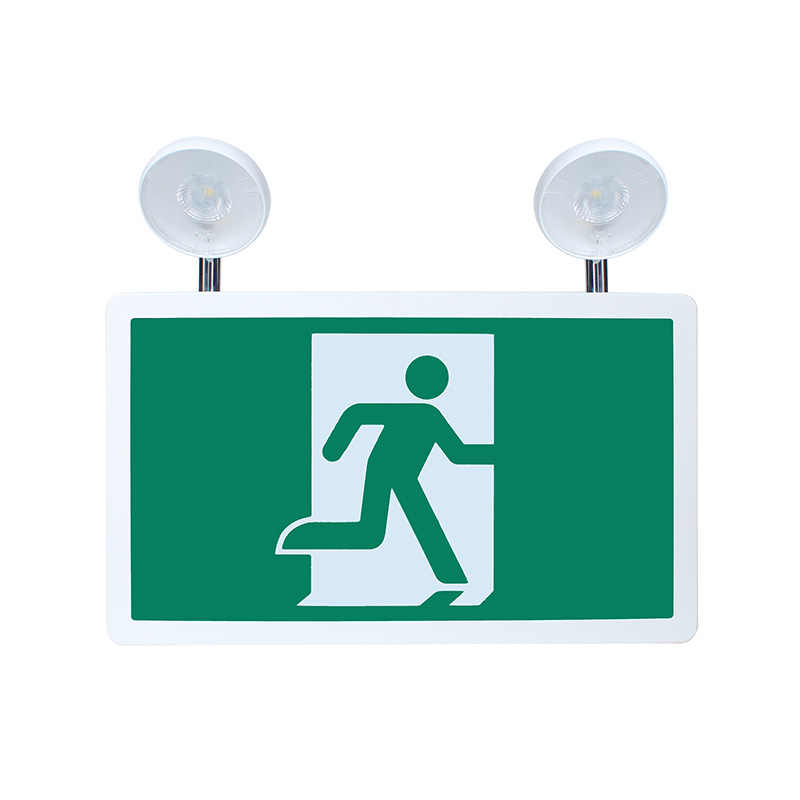

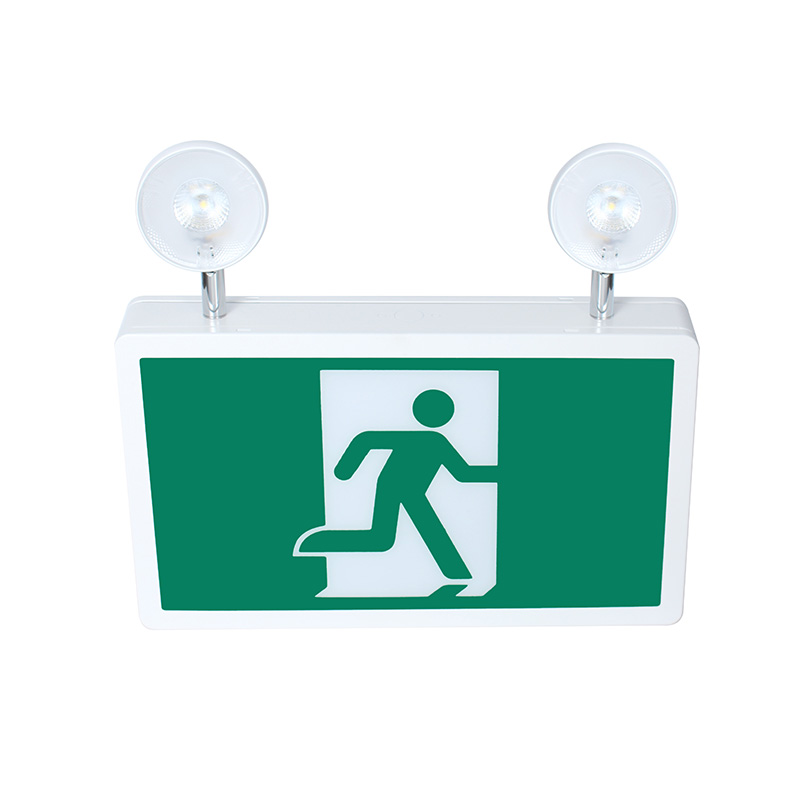

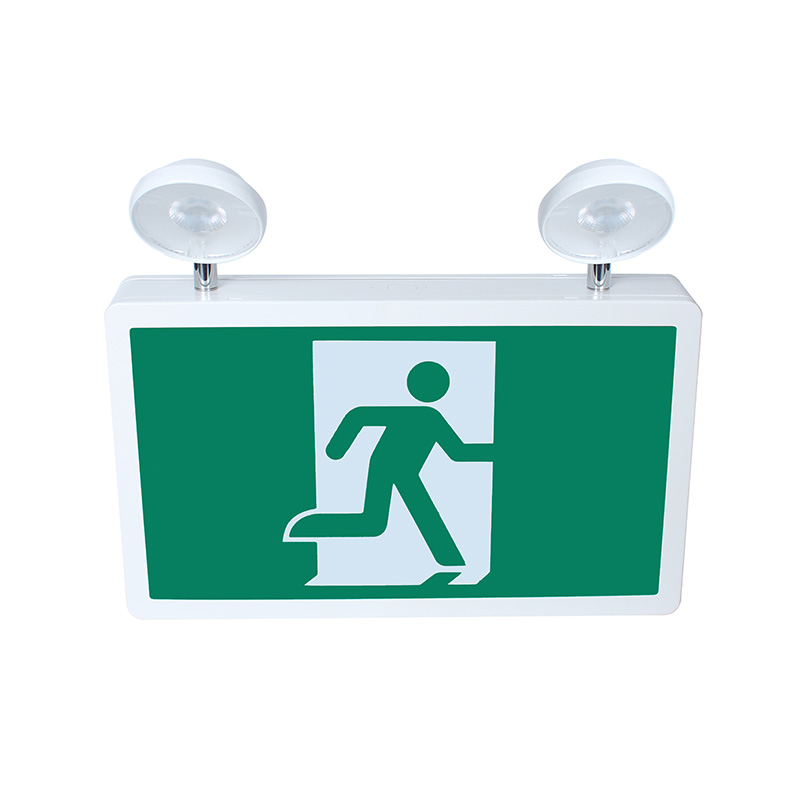

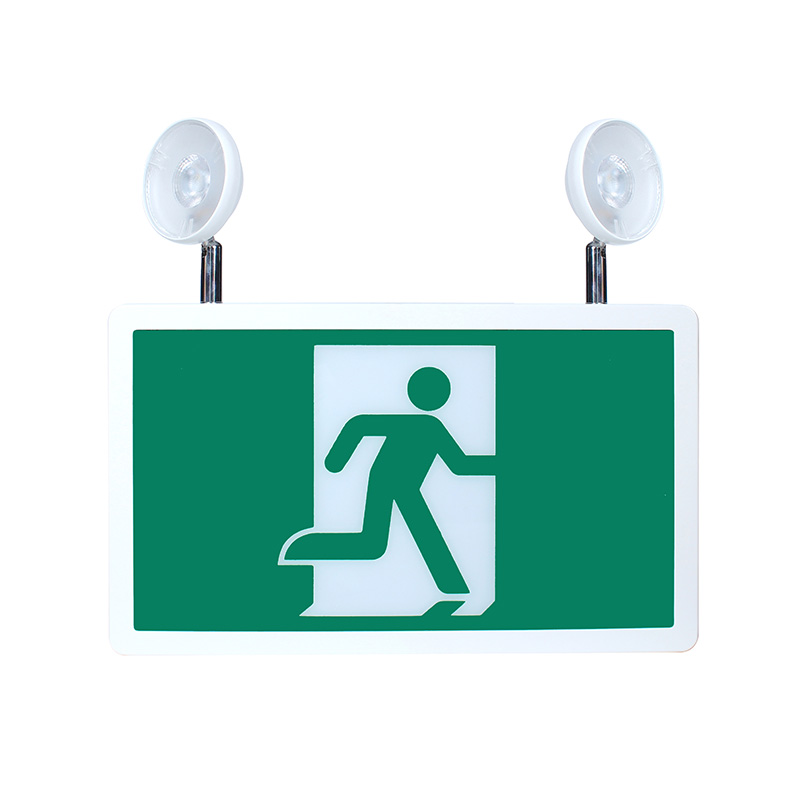

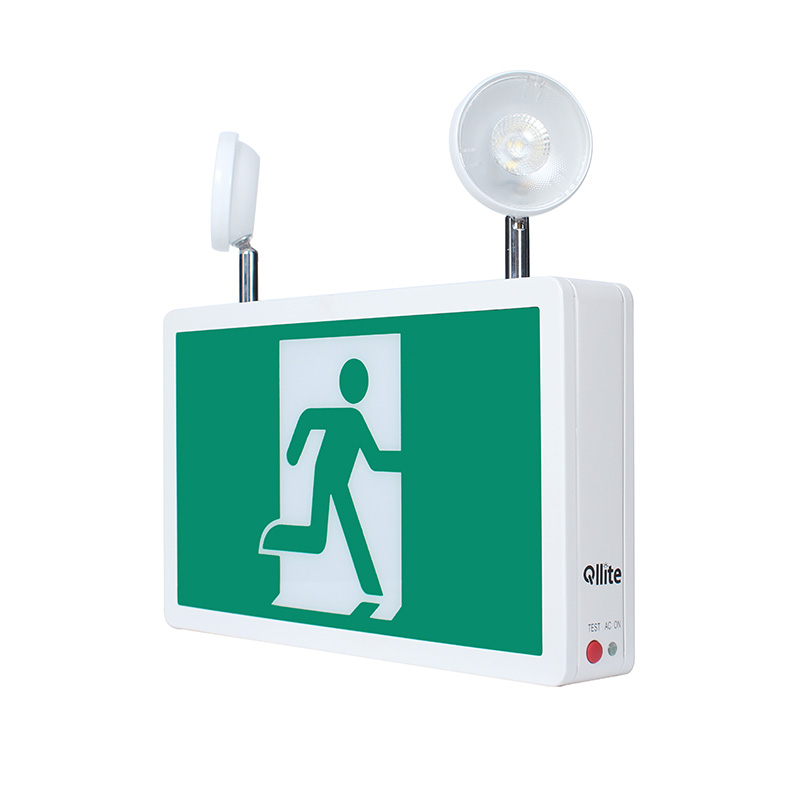

Supply and install the SCRM Series heavy-duty 20-gauge steel Running Man and Battery combination unit. The sign shall operate with universal 120 to 347 VAC input and provide a minimum of 90 minutes of emergency illumination for both the sign and the two integrated LED heads upon AC failure. The unit shall consist of two high-performance LED lampheads providing a total of 250 lumens. The unit shall be field-configurable for single or double-face applications and suitable for wall or end mount. The unit shall be CSA C22.2 No. 141-15 certified and C860 listed.

CONSTRUCTION

• Material: Heavy-duty 20-gauge steel housing with a white powder coat finish.

• Design: Features a universal J-box mounting pattern and interchangeable faceplates for easy installation and maintenance.

• Heads: Two fully adjustable, high-performance LED heads.

• Ambient Temperature: Rated for damp locations at (0°C to 50°C/32°F to 122°F).

ELECTRICAL

• Input: Universal 120-347Vac, 50/60Hz.

• Efficiency: Highly efficient energy consumption (2.3W) with a fully automatic, current-limiting charger.

• Protection: Integrated short-circuit protection and regulated charge voltage to ensure stable performance and maximize battery life.

• Advanced Safety: Filtered charger input minimizes charge voltage ripple and prevents over/undercharging.

• Battery: 3.6V AA 900mAh long-life, maintenance-free, rechargeable NiCd battery.

LISTINGS & COMPLIANCE

• Performance: C860 listed for energy efficiency.

• Canadian Standards: Listed and labeled to comply with CSA C22.2 No. 141-15.
