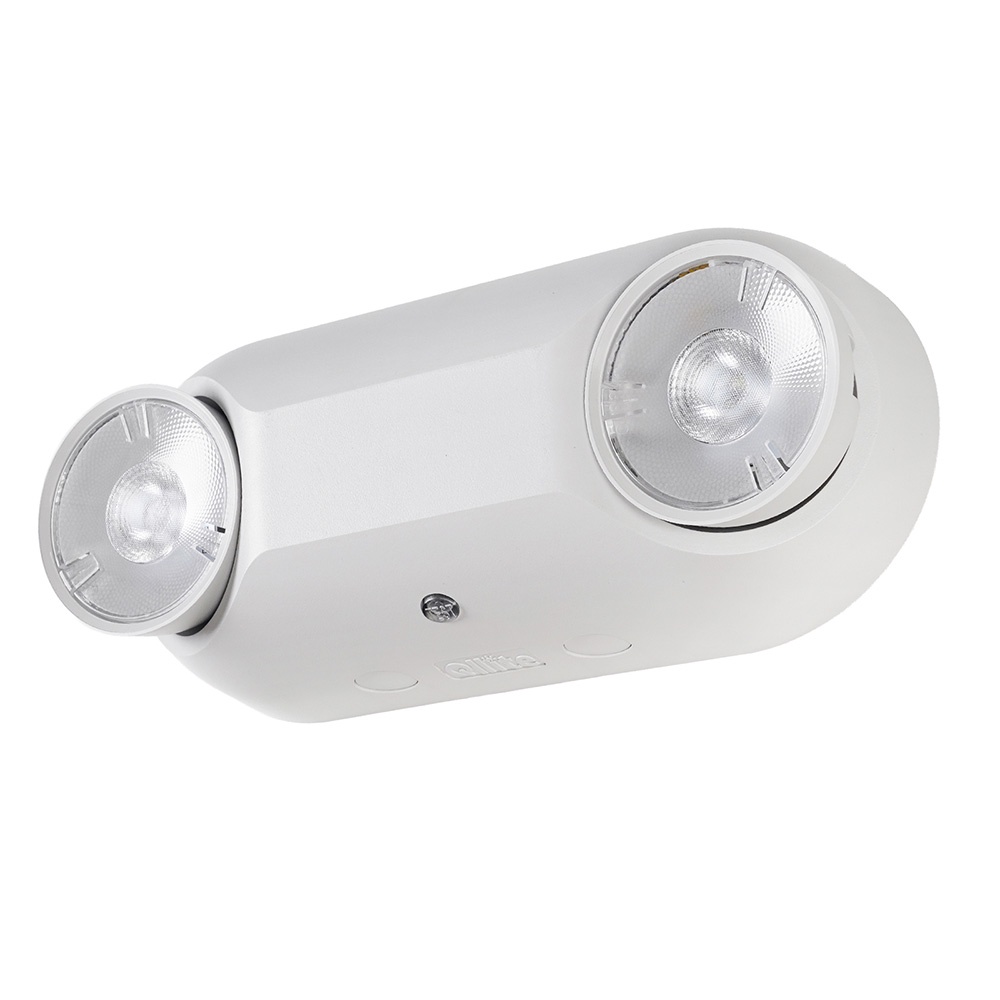

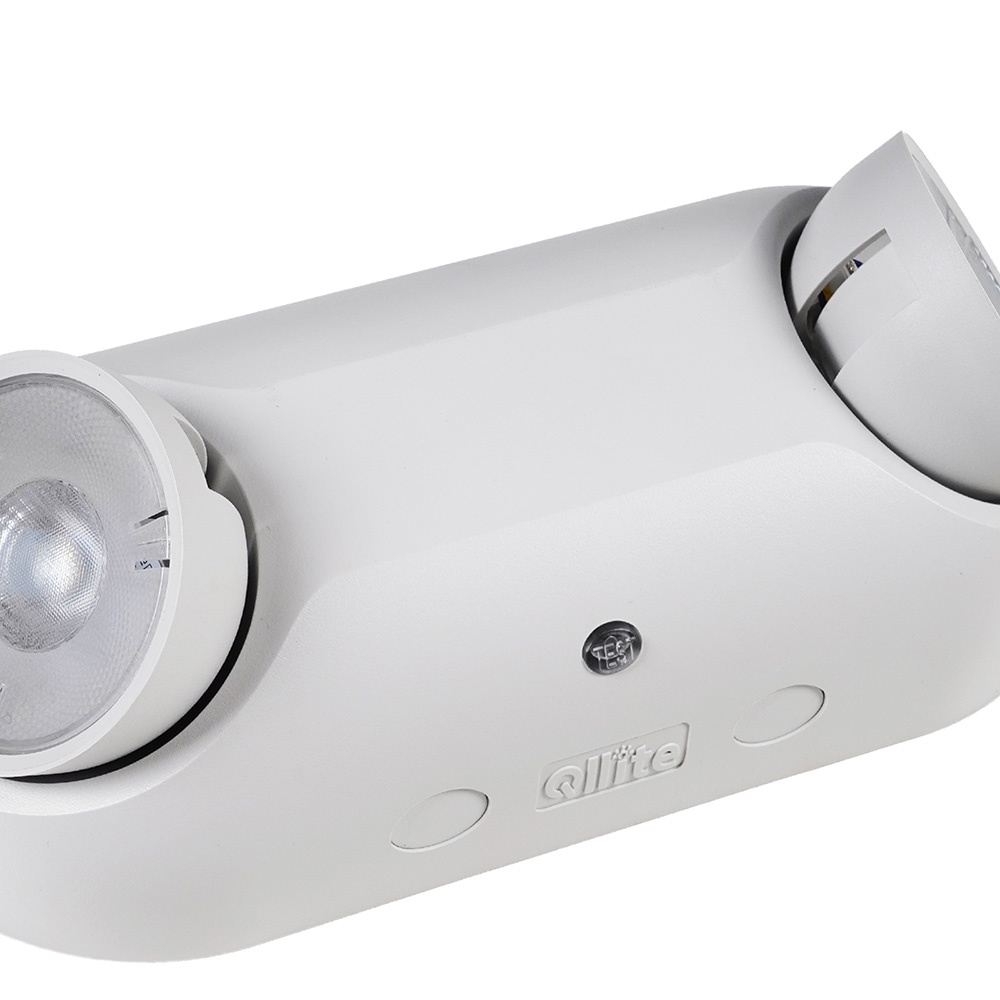

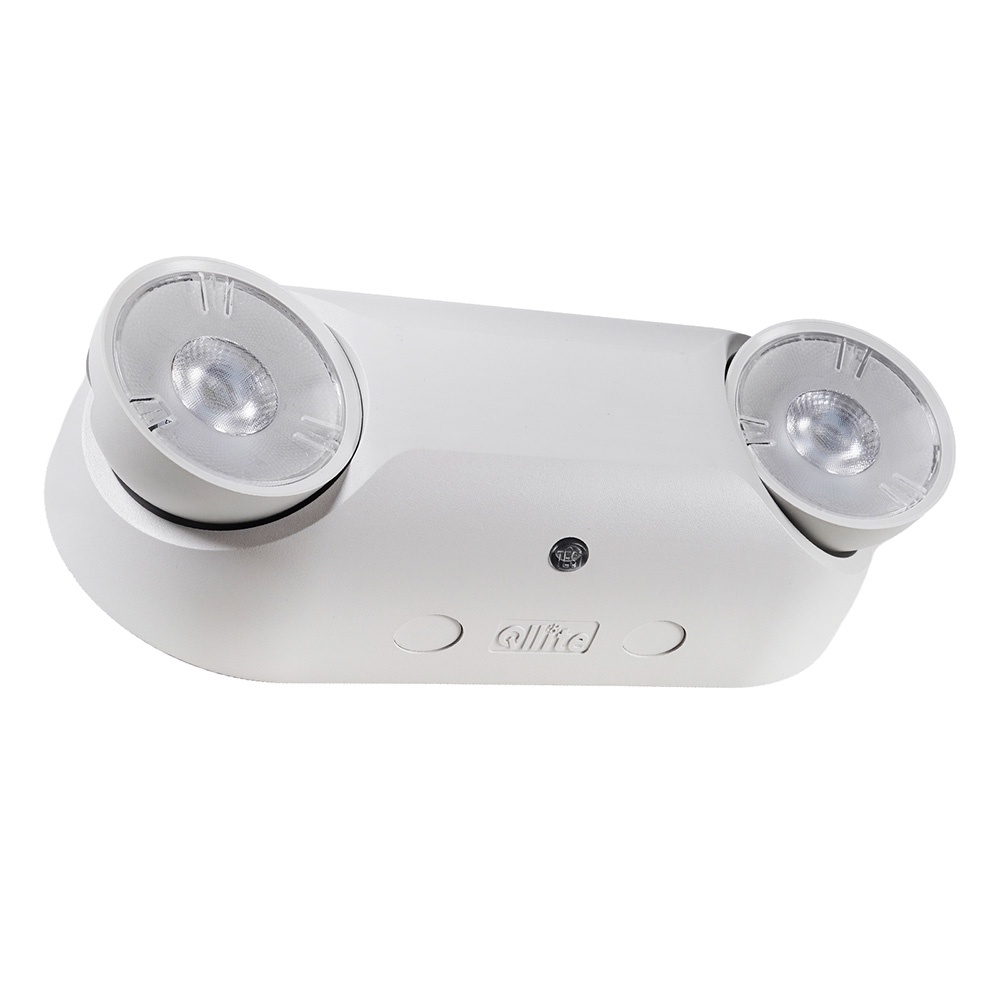

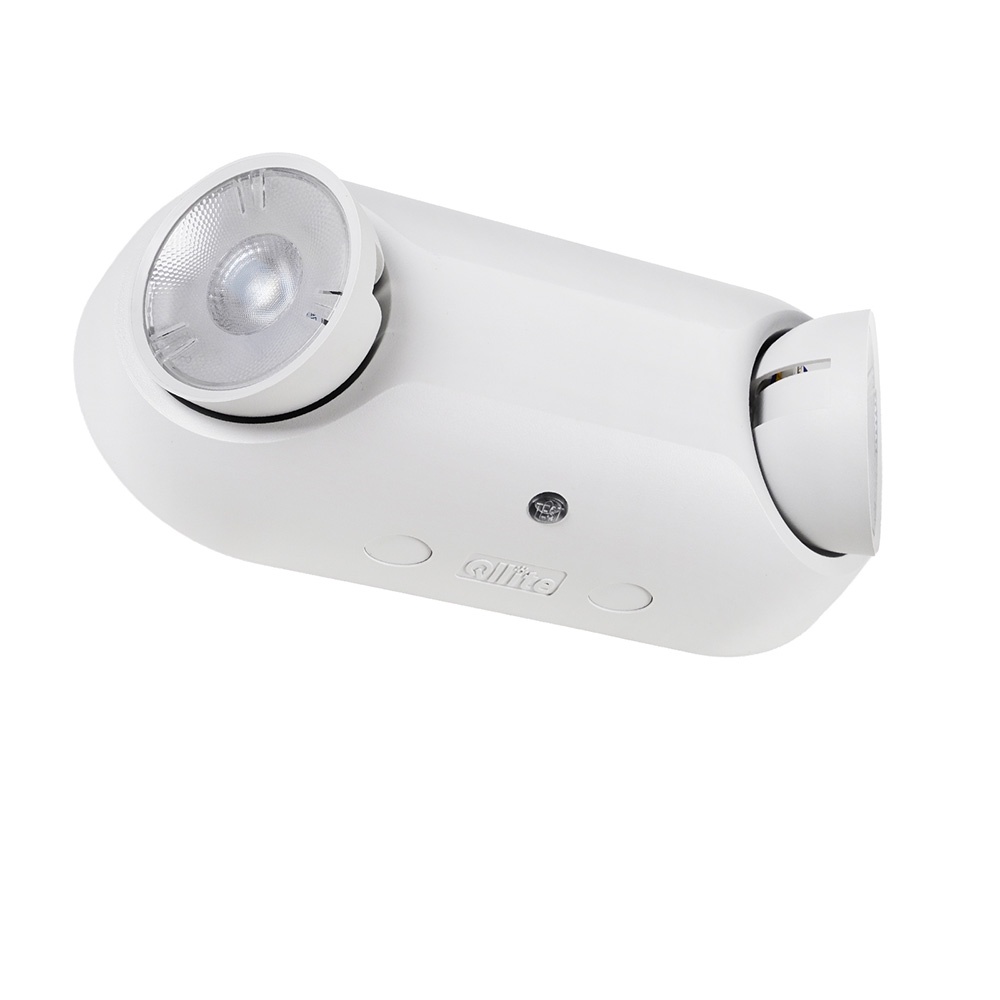

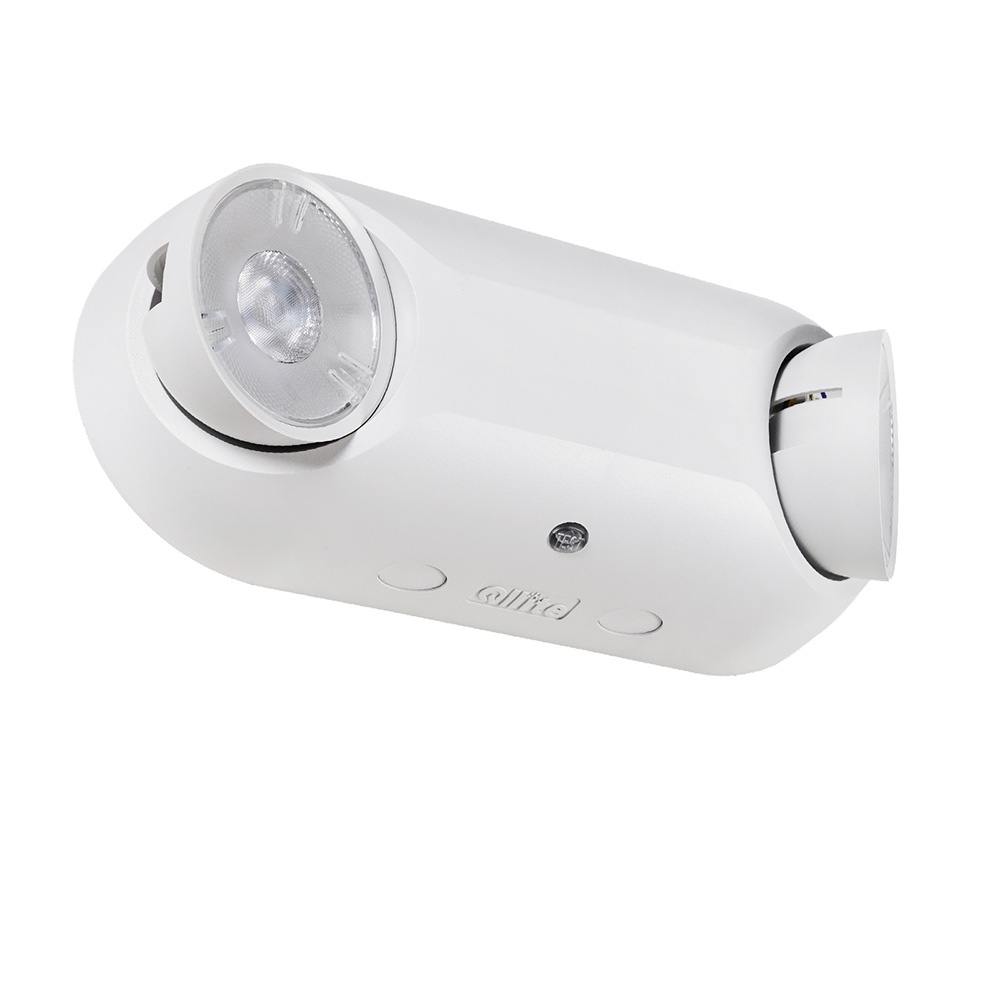

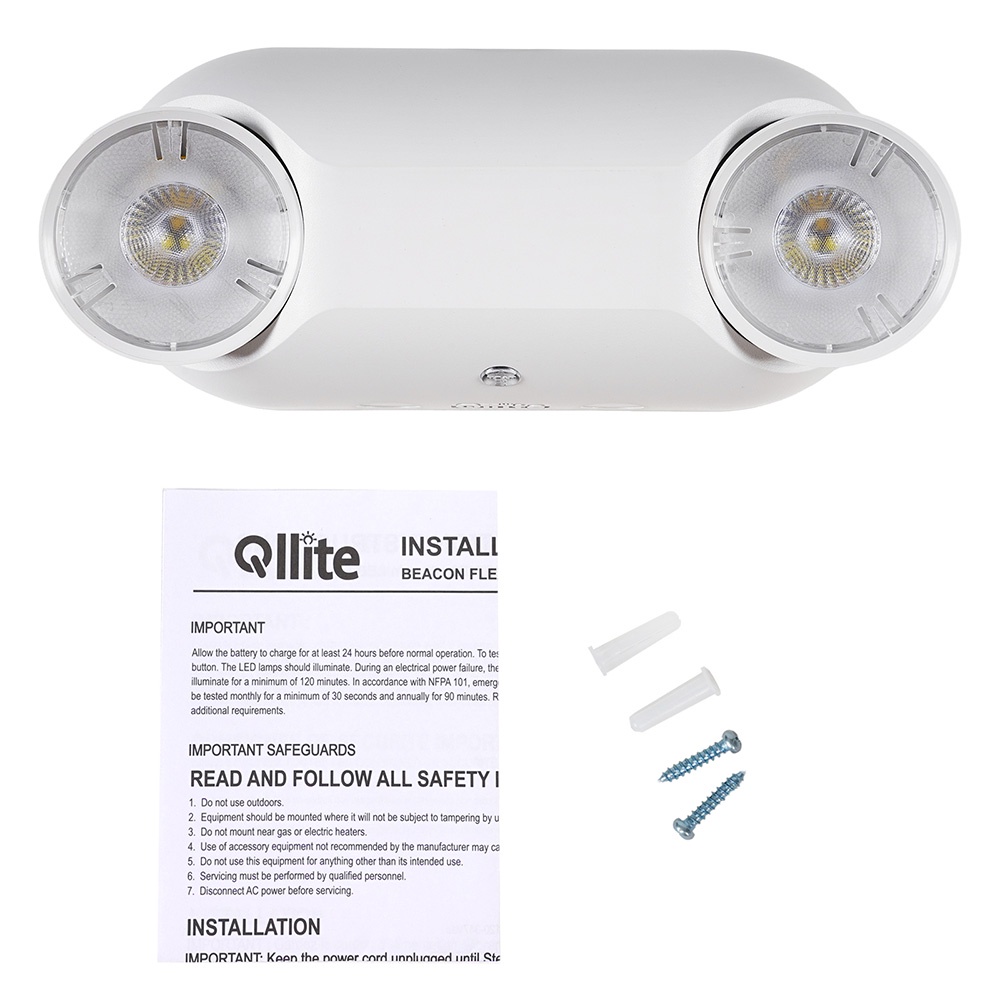

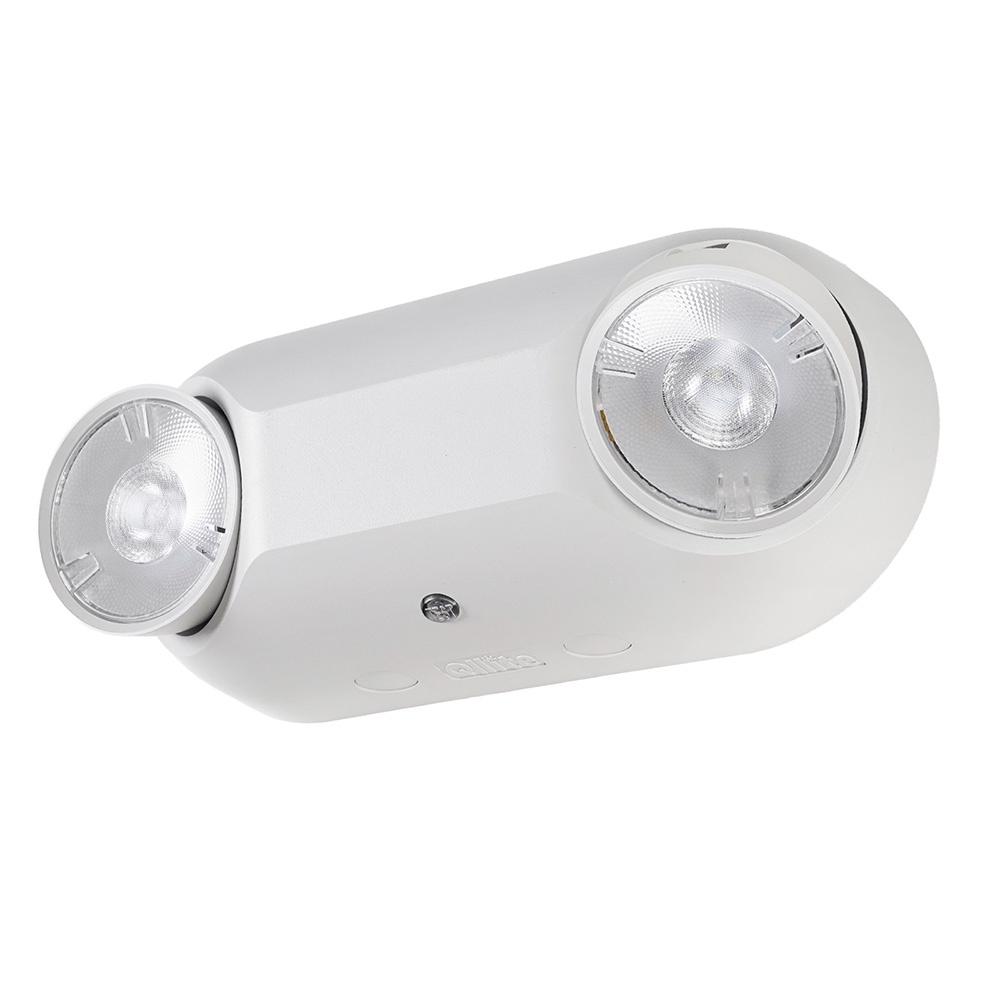

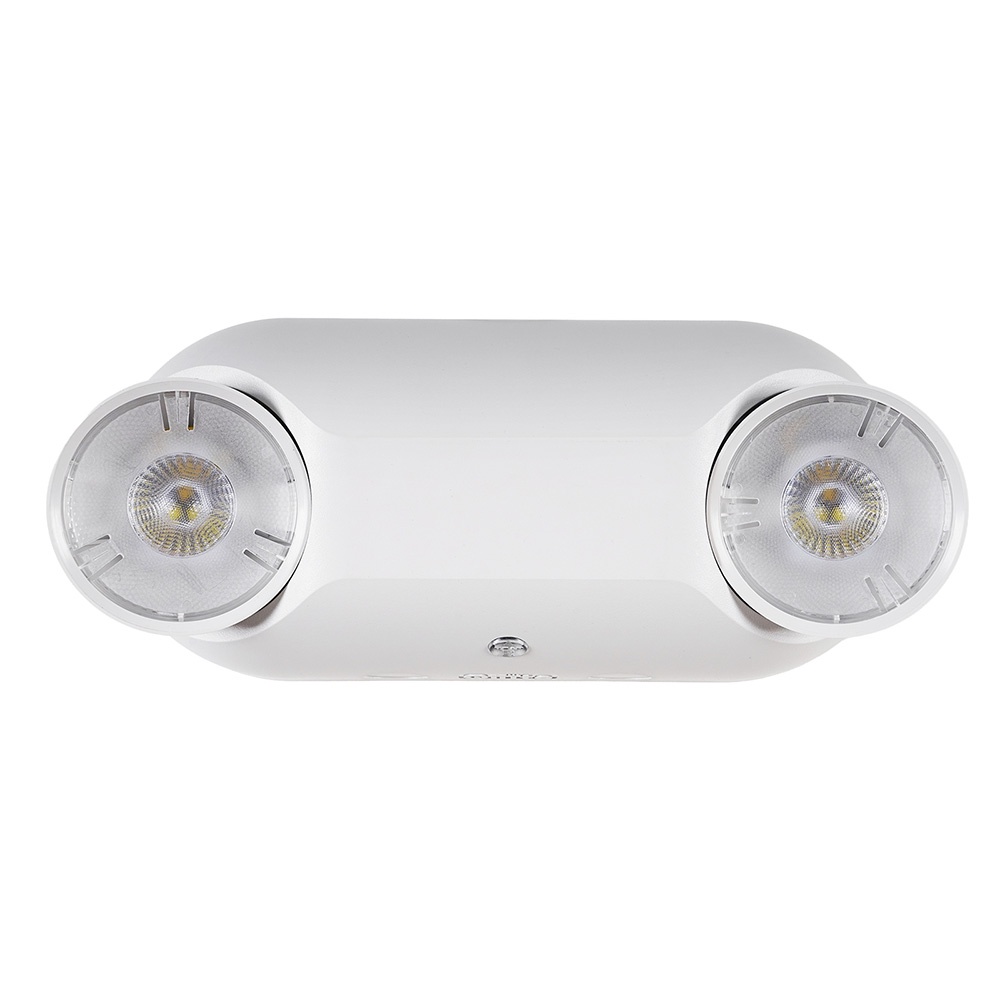

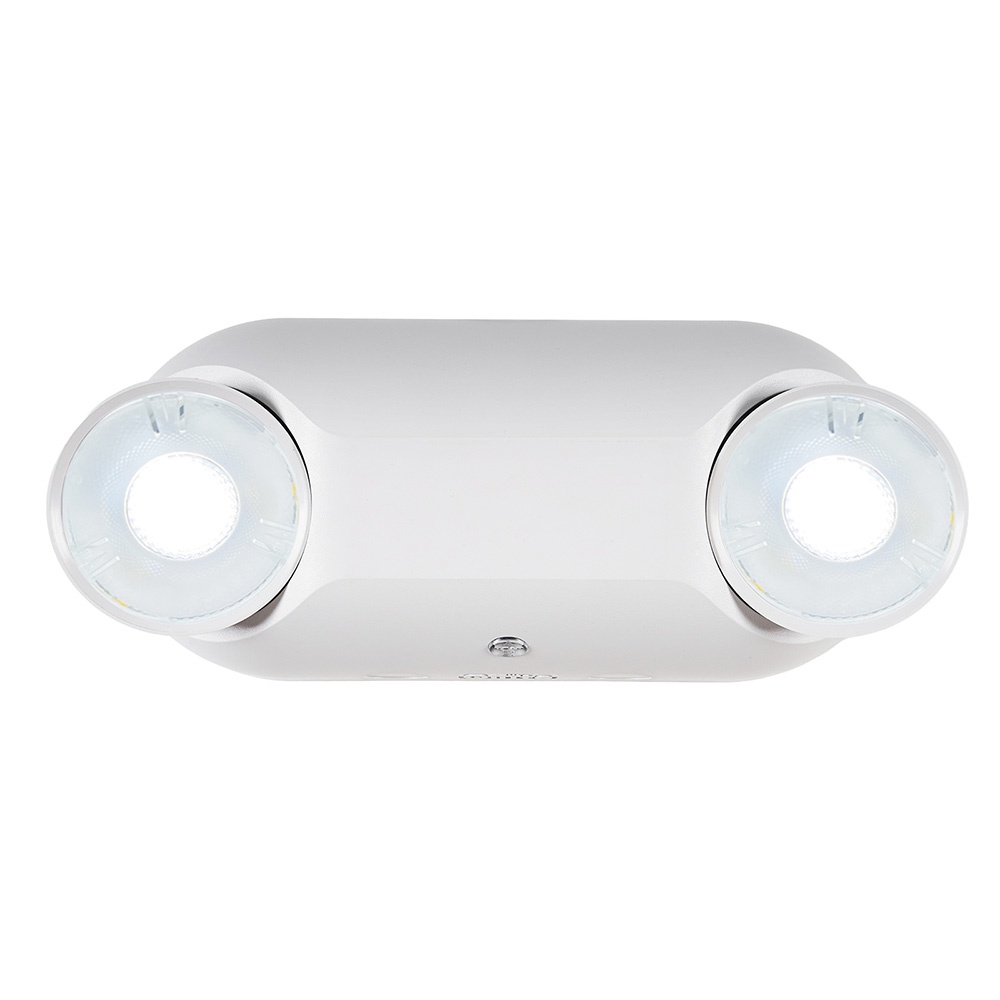

Beacon-PEMLW Plastic Battery Unit

FEATURES & SPECIFICATIONS

• Beacon Series dual-head emergency lighting battery unit.

• Injection-molded, high-impact-resistant thermoplastic housing with a white finish and 5VA flame-retardant rating.

• Universal 120–347 VAC input, 50/60 Hz.

• Minimum 120-minute emergency illumination upon loss of AC power.

• Two adjustable 1.5W LED lamp heads delivering a total of 250 lumens.

• Suitable for wall or ceiling mounting.

• Rated for damp locations at 0°C to 50°C.

CONSTRUCTION

• Material: Injection-molded, engineering-grade, high-impact-resistant thermoplastic with a 5VA flame-retardant rating.

• Finish: White.

• Design: Easy-connect backplate with a universal junction-box mounting pattern.

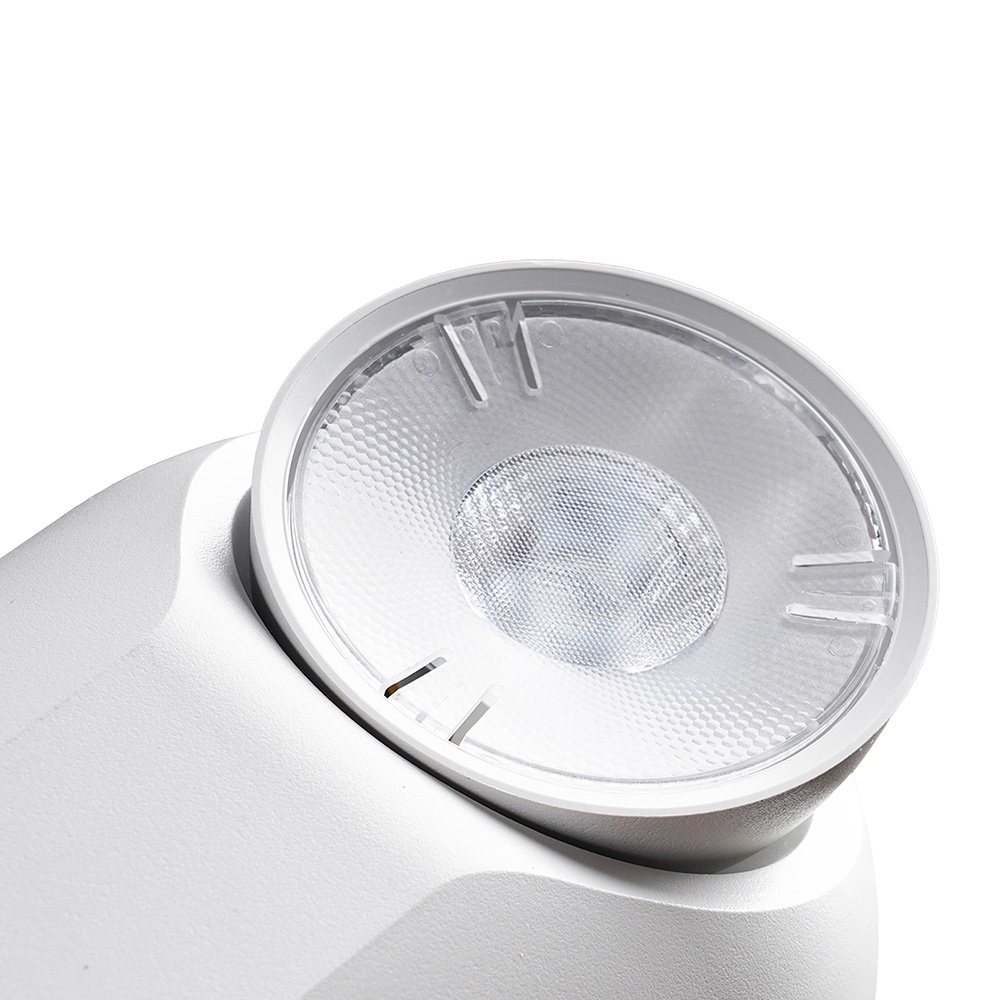

• Heads: Two adjustable LED lamp heads with impact-resistant polycarbonate lenses.

• Ambient Temperature: 0°C to 50°C (32°F to 122°F), suitable for damp locations.

ELECTRICAL

• Input: Universal 120–347 VAC, 50/60 Hz.

• Emergency Illumination: Minimum 120 minutes upon loss of normal AC power.

• LED Output: Two 1.5W LED lamp heads, delivering a total of 250 lumens.

• Efficiency: Low standby power consumption of 1.1W with a fully automatic, current-limiting charger.

• Circuit Protection: Short-circuit protection and regulated charging voltage help maintain stable charging performance. Filtered charger input minimizes voltage ripple.

• Battery Safety: AC Reset allows battery connection before AC power is applied. Low Voltage Disconnect (LVD) protects the battery against deep discharge.

• Battery: Long-life, maintenance-free, rechargeable 3.6V AA 900mAh NiCd battery.

• Recharge Time: 24 hours.

INSTALLATION

• Mounting: Suitable for wall or ceiling mounting.

• Backplate: Fits most standard junction boxes.

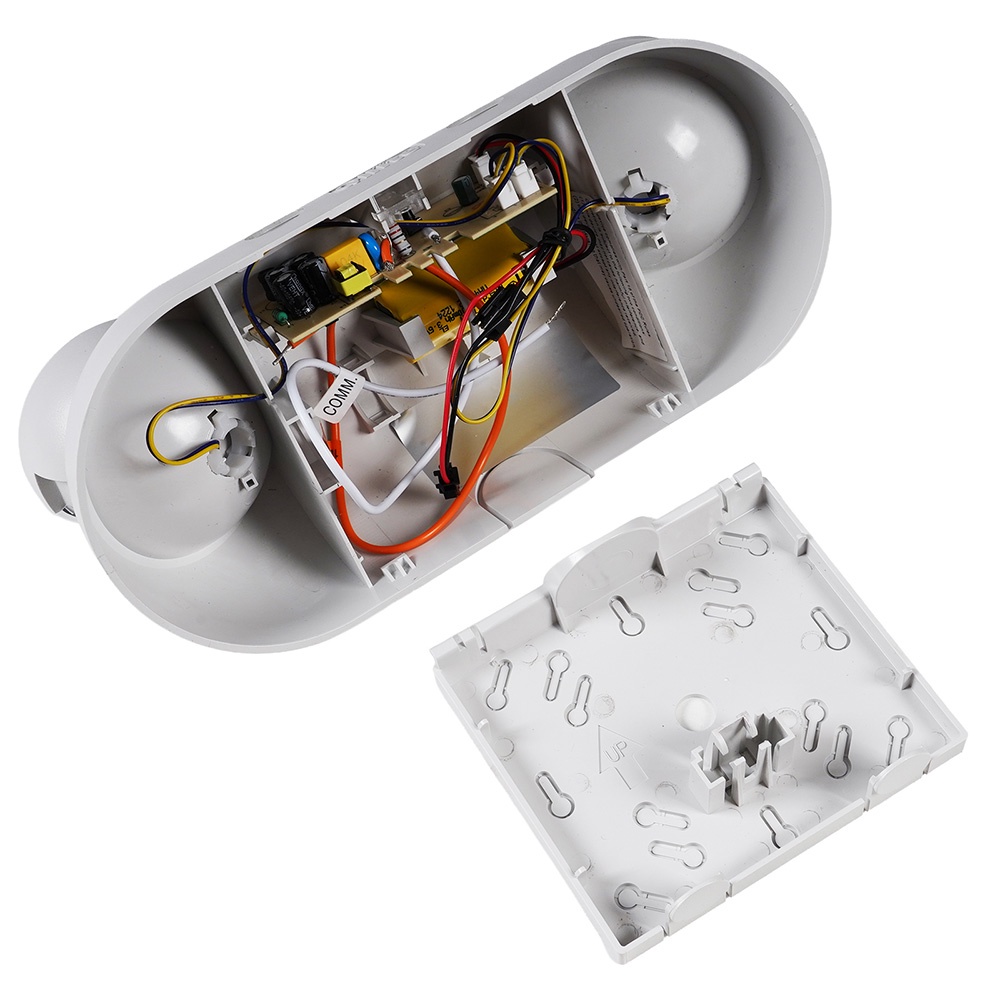

• Connection: The housing snaps onto the easy-connect backplate, making the internal electrical connections.

LISTINGS & COMPLIANCE

• Safety Standards: Listed to UL 924 and Canadian standard CSA C22.2 No. 141.

• Environmental: Rated for damp locations at 0°C to 50°C.

• Electromagnetic Compatibility: ICES-005 compliant.
