TYPICAL SPECIFICATION

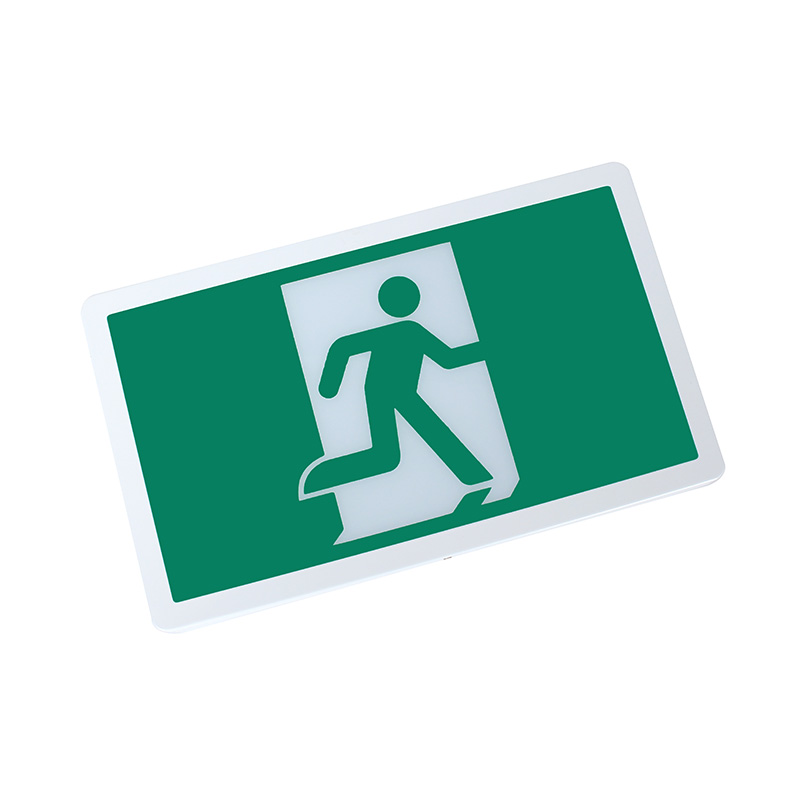

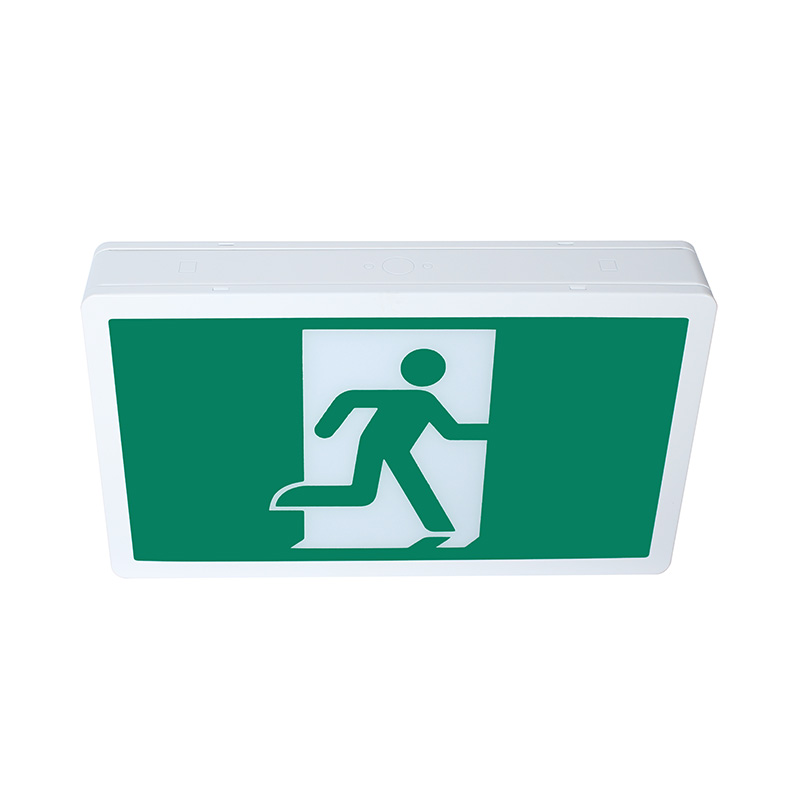

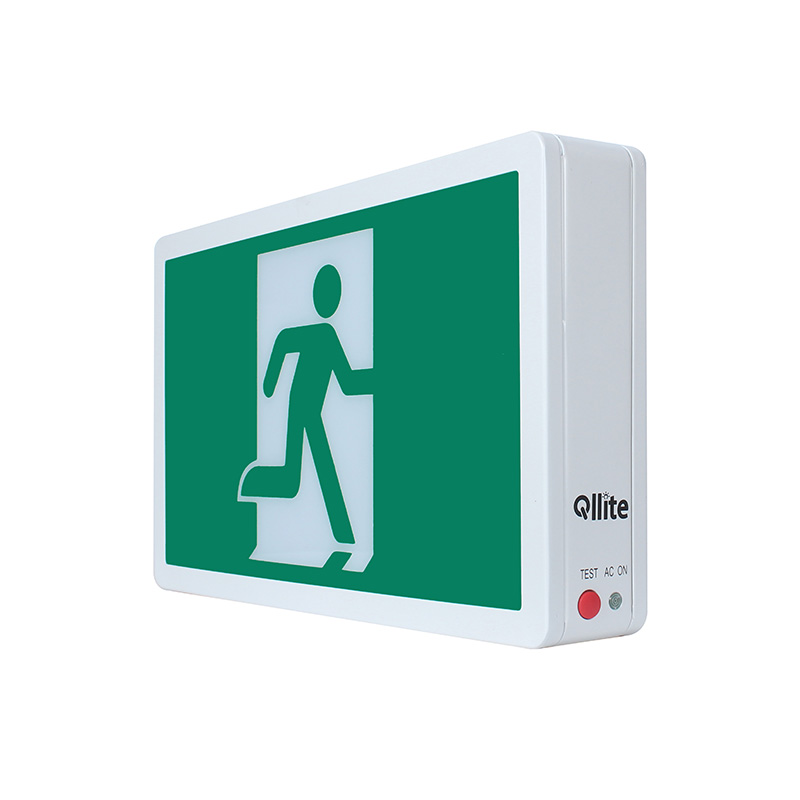

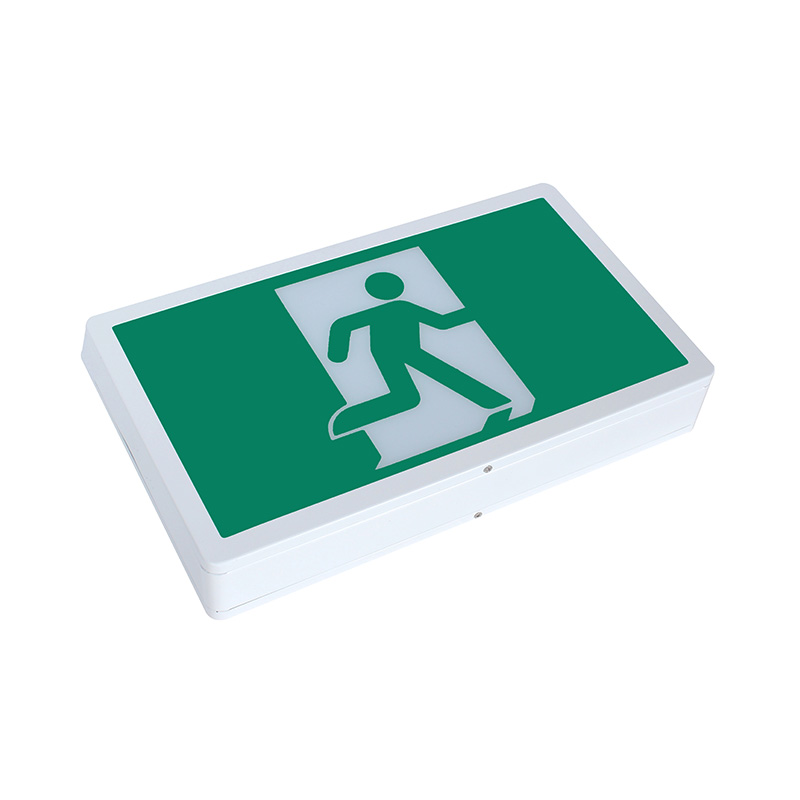

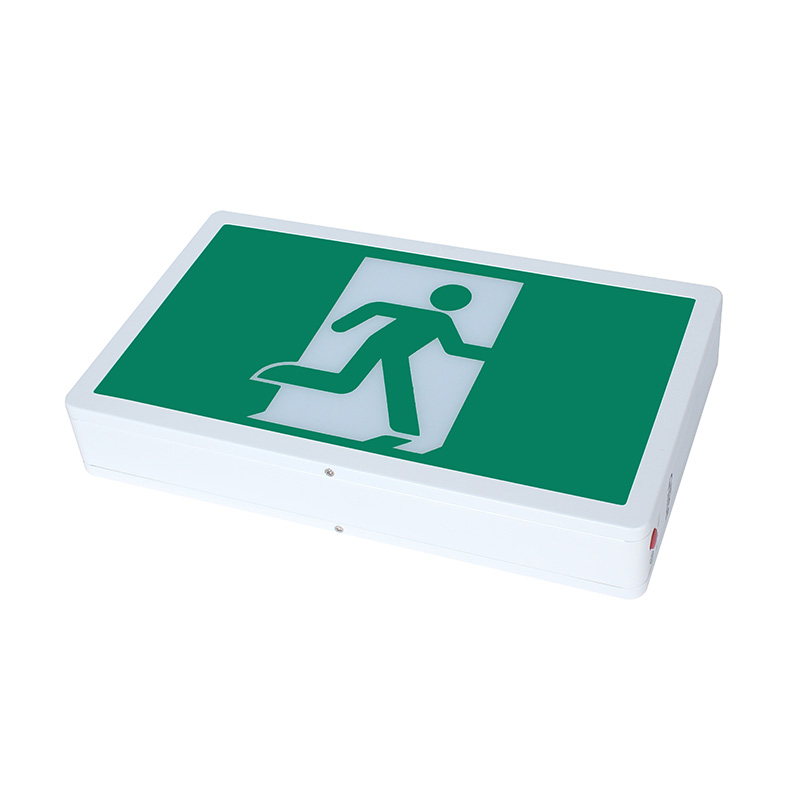

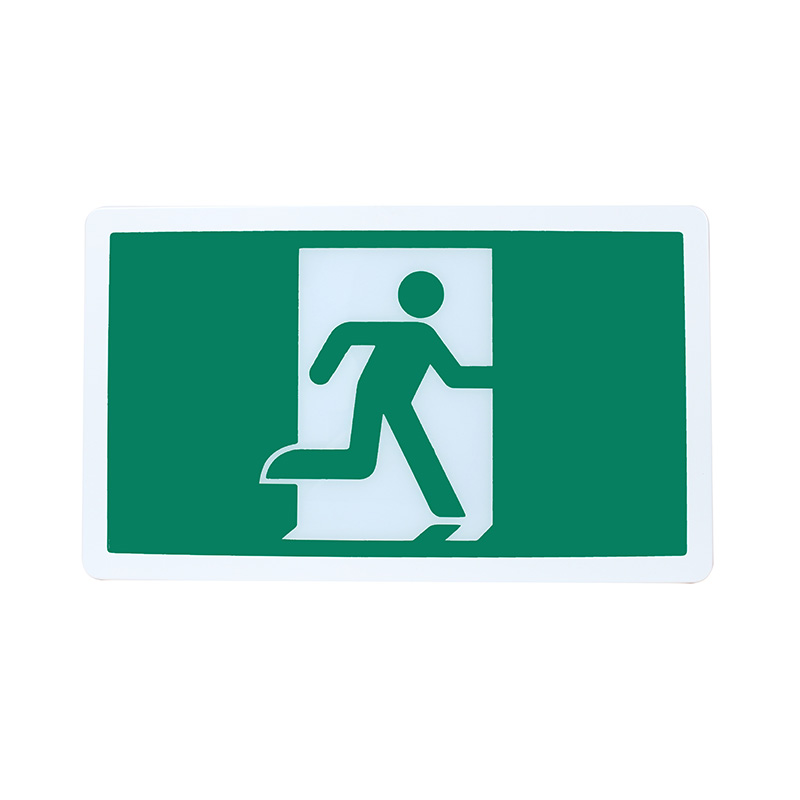

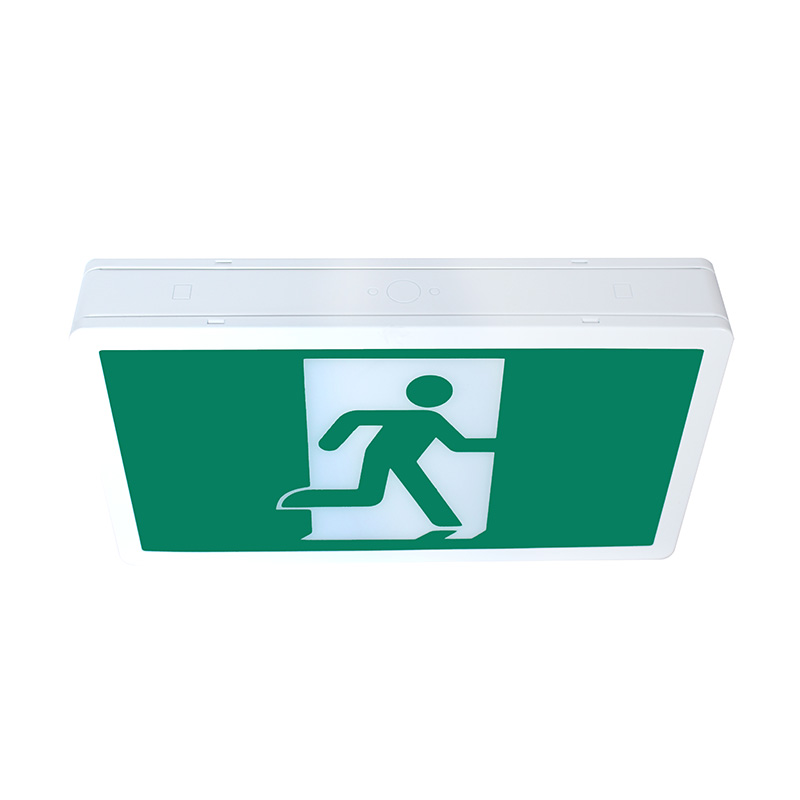

Supply and install the SRM Series heavy-duty 20-gauge steel Running Man Exit Signs. The sign shall operate with universal 120 to 347 VAC input and provide a minimum of 90 minutes of emergency illumination upon AC failure. The face shall be illuminated by a high-efficiency white LED light source, providing uniform illumination without shadows. The unit shall be field-configurable for single or double-face applications and suitable for wall, end, ceiling, or pendant mount. The sign shall be CSA C22.2 No.141-15 certified and C860 listed.

CONSTRUCTION

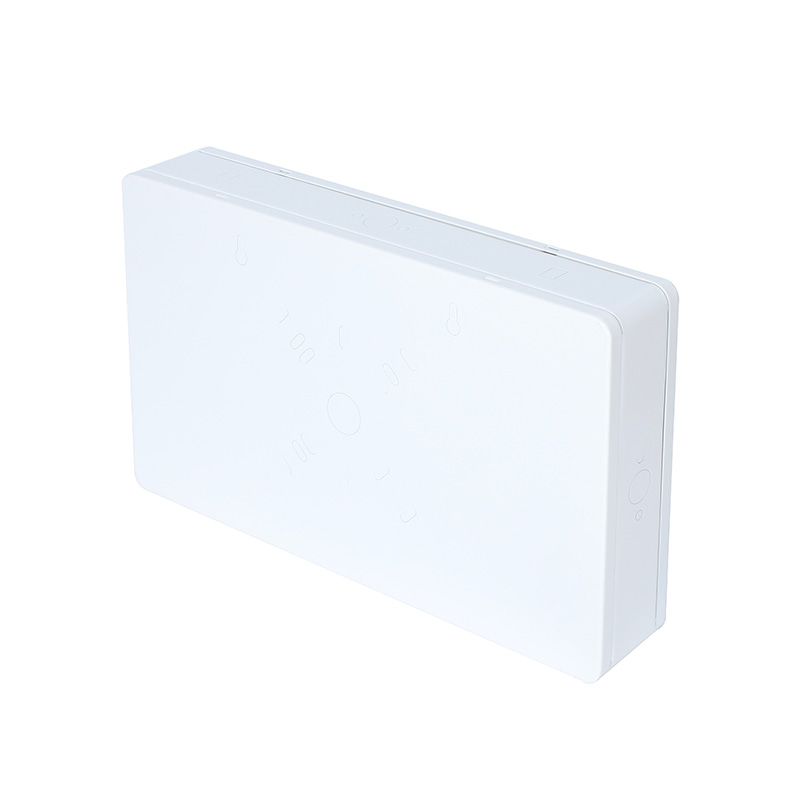

• Material: Heavy-duty 20-gauge steel housing.

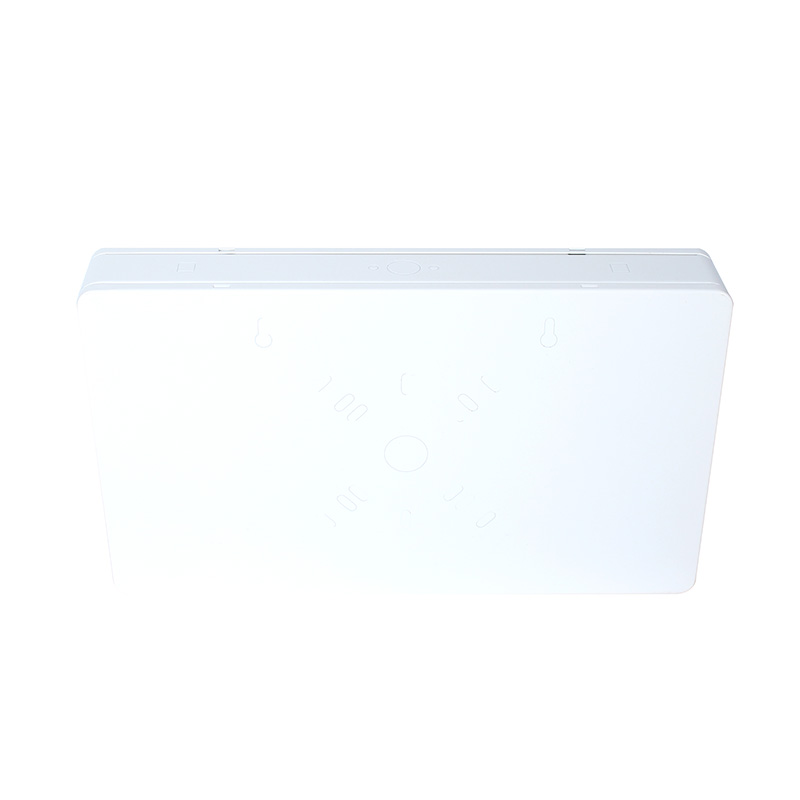

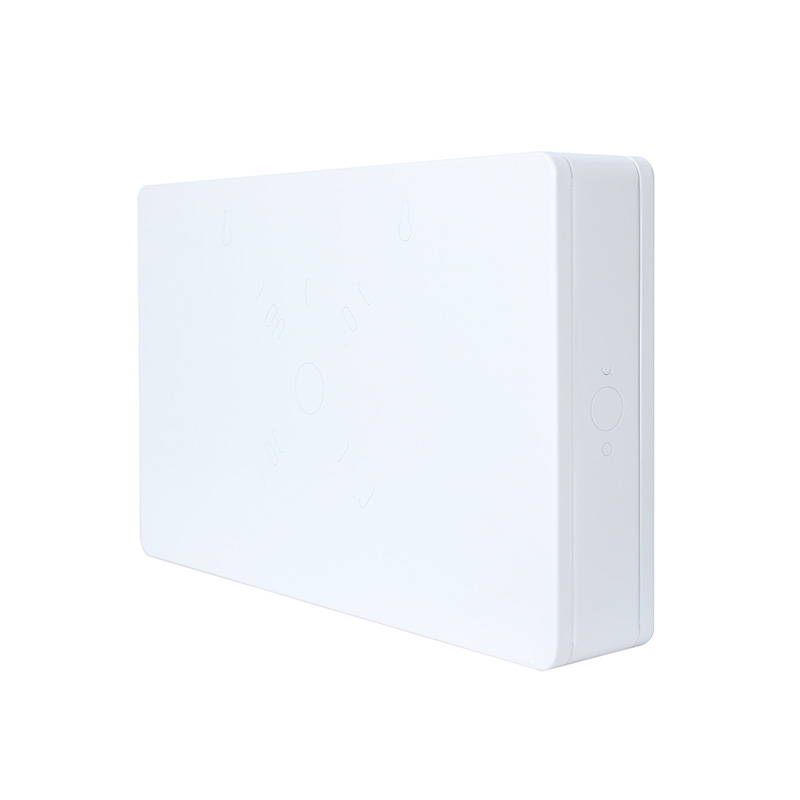

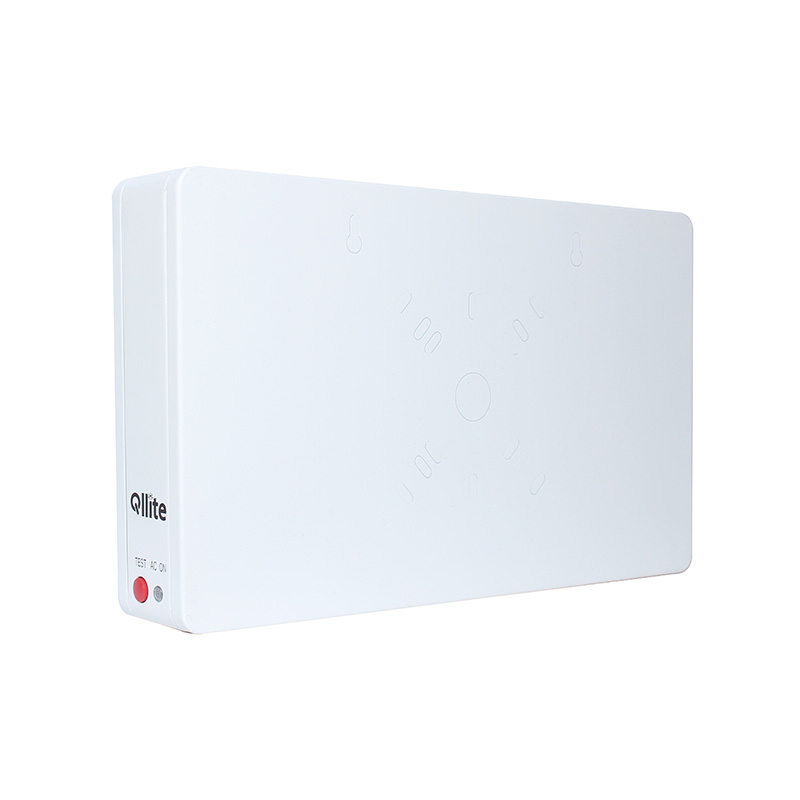

• Design: Features a universal J-box mounting pattern and interchangeable faceplates for easy installation and maintenance.

• Ambient Temperature: Rated for damp locations at (0°C to 50°C/32°F to 122°F).

ELECTRICAL

• Input: Universal 120-347Vac, 50/60Hz.

• Efficiency: Ultra-low power consumption (1.9W) with a current-limiting charger to maximize battery life.

• Protection: Integrated short-circuit protection and regulated charge voltage to ensure stable performance.

• Battery Safety: Features AC Reset and Low Voltage Disconnect (LVD) to prevent deep discharge damage.

• Battery Type: 3.6V AA 500mAh long-life, maintenance-free, rechargeable NiCd battery.

LISTINGS & COMPLIANCE

Performance: C860 listed for energy efficiency.

Canadian Standards: Listed and labeled to comply with CSA C22.2 No. 141-15.
